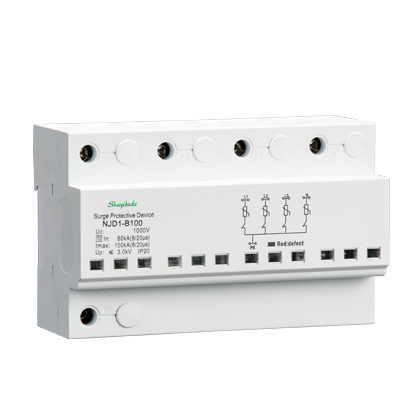

Overview of the products

Power surge protectors (SPDs) are used to protect against lightning or other transient overvoltage induced surges, releasing large surge currents on the power line to the ground and limiting overvoltage. Mainly installed in various distribution cabinets (boxes) of the power supply system, acting as a role in protecting the circuit, electrical equipment, and personal safety.

Electric technical parameters

Product model / parameter	NJD1-FA200	NJD1-FA160	NJD1-FA120	NJD1-FA100	NJD1-FA80	NJD1-FA60
Rated working voltage	110/220/620/ 660/ 690/ 950/ 1140V
Maximum continuous operating voltage	690 /750/ 1000/ 1300V
Voltage protection level	<5.0
Maximum discharge current	200	160	120	100	80	60
Nominal discharge current	120	100	80	60	40	30
Lightning pulse current	12.5 15 12 50
response time	<25
Minimum cross-sectional area of connecting wires	≥ 6V				≥ 4V
Front overcurrent protection device	T2 200/160/120/100/80/60
work environment	-40℃ ~+85℃
Communication and alarm line load area	≤ 1.5
relative humidity	≤ 95%
install	Guide rail installation 35mm
Shell material	glass fiber reinforced plastic

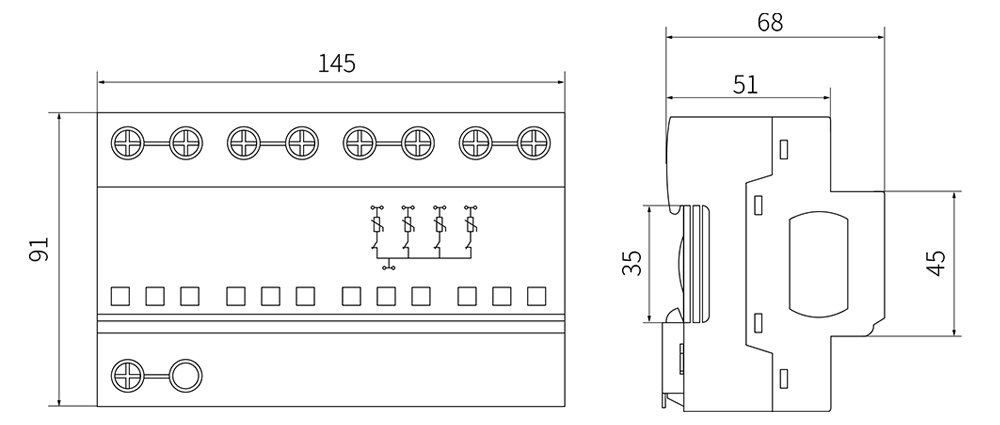

Outline and Installation Dimensions
