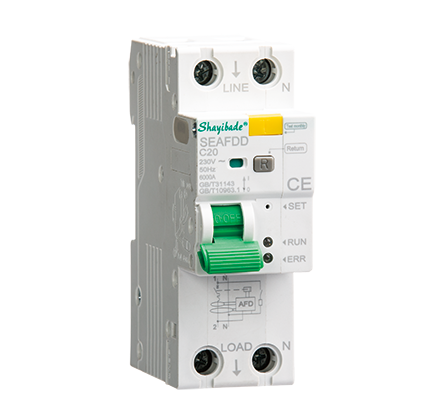

Overview of The Products

The fault arc protector, hereinafter referred to as the protector, can effectively detect fault arcs in the connected line, including fault parallel arcs and fault series arcs, and, when a fault arc that causes a fire is detected in the line, can perform a disconnection and power-off function so as to achieve the purpose of warning the occurrence of a fire. This product is suitable for the electrical circuits of 10KW and below in industrial and civil buildings and the length of the protective circuit should not exceed 100 meters. It complies with the GB/T31143-2014 IEC62602 standard and can be applied to nursing homes, schools, commercial buildings, hotels, factories, warehouses, libraries, offices, residential homes, and entertainment venues.

Electric Technical Parameters

Project	Index
Working power supply	Rated voltage AC230V
Rated frequency	50Hz
Monitoring alarm	Load below fault arc alarm AC63A
Voltage	Rated value AC230V
Current	Rated value AC63A and below
External dimensions	1P:54*94*65 2P:72*94*65
Installation method	Guide rail installation 35mm
RUN Indicator	Running normally, set up the key at it flashes
SET	Key settings
Breaking capacity	Rated short-circuit breaking capacityicn(KA):4.5
Protection level	IP20
Wiring capability	1~25mm
Detachment characteristics	C，D
Electrostatic discharge resistance	Air discharge>8; Contact discharge>6
Pulse group anti-interference	4KA
Surge impact interference	4KA
Operating ambient temperature	-23~+55℃
Damp heat resistance	type 2
Pollution level	2
Installation type	level M
altitude	2000m
Installation environment	Where there is no significant vibration or impact

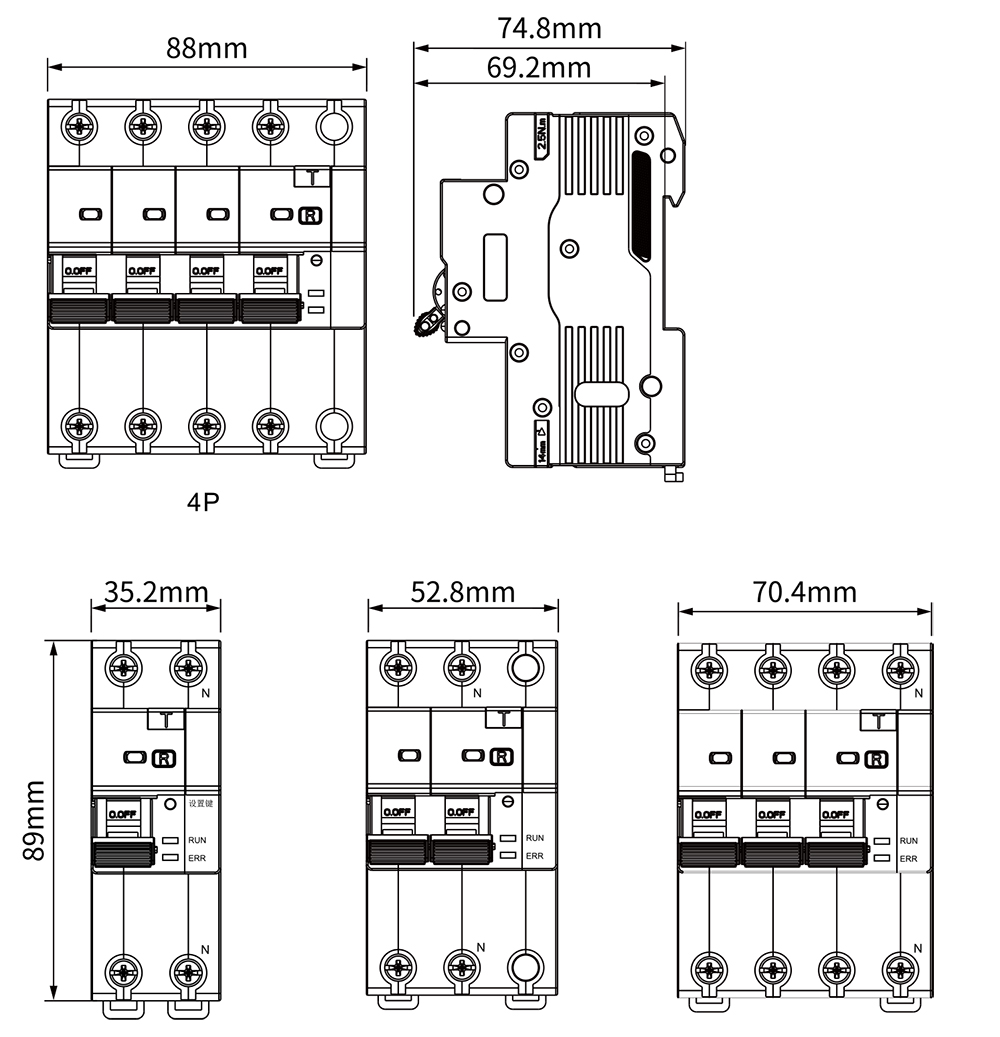

Outline and Installation Dimensions
