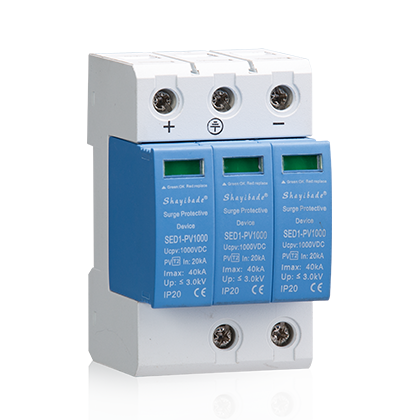

Overview of the products

DC surge protectors are mainly used on the current lines between the battery pack and inverter in centralized photovoltaic power generation systems; AC surge protectors are mainly used in centralized photovoltaic systems for AC lines between inverters and power distribution panels, between power distribution panels and AC loads and between the low-voltage sides of box transformers. For string photovoltaic power generation systems, AC surge protectors are mainly used to protect the AC lines between inverters and AC combiner boxes, as well as between the AC combiner box and the low-voltage side of the box transformer.

Electric technical parameters

Product model /parameter	NJD1-GD-PV -40/24V	NJD1-GD-PV -40/220V	NJD1-GD-PV -40/500V	NJD1-GD-PV -40/690V	NJD1-GD-PV -40/1000V	NJD1-GD-PV -40/1500V
specifications	2P 36mm	2P 36mm	3P 54mm	3P 54mm	3P 54mm	3P 54mm
Nominal flow capacity	20	20	20	20	20	20
Maximum flow capacity	40	40	40	40	40	40
Protection level	DC220V	DC220V	1.8kV	1.8kV	1.8kV	5.0kV
response time	24	25	25	25	25	25
Rated working voltage	24	220	500	690	1000	1500
Continuous operating voltage	48	275	750	780	1100	1800
Leakage current	≤ 2	≤ 2	≤ 20	≤ 20	≤ 20	≤ 20
working temperature	-40~+85

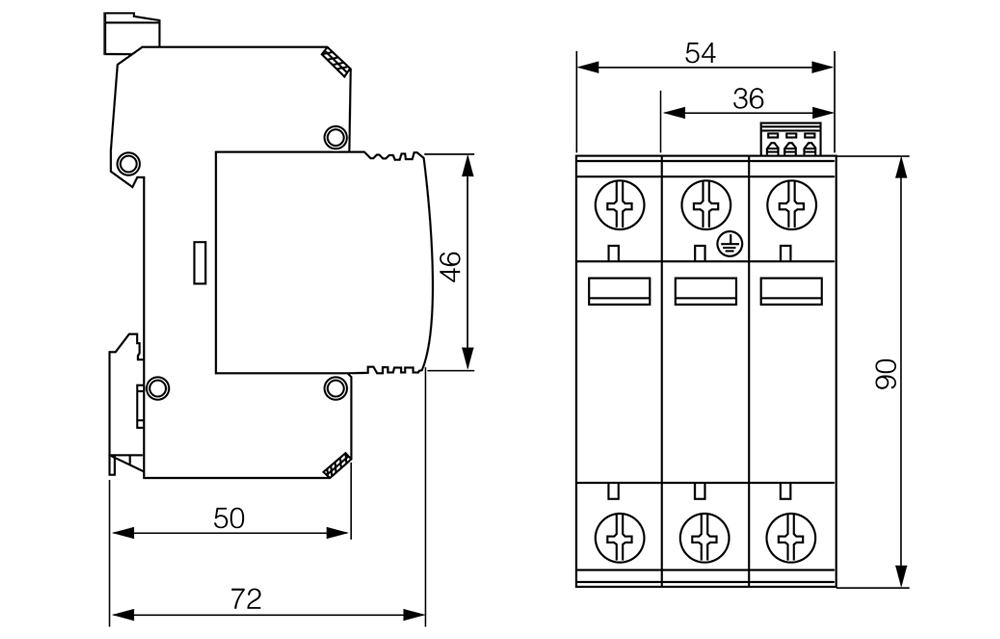

Outline and Installation Dimensions
