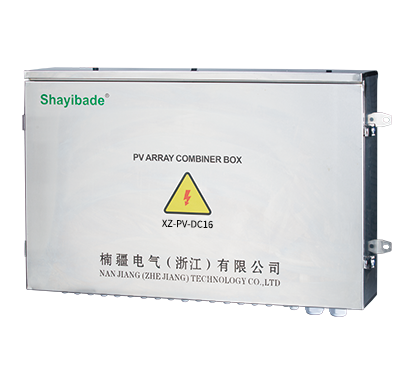

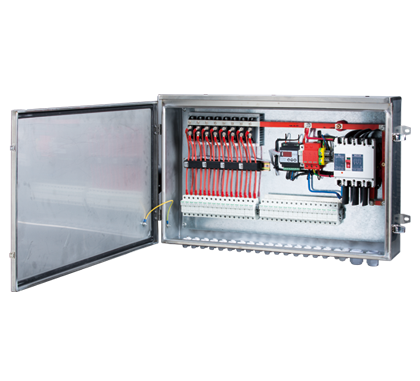

XZPV-DC16 lightning protection combiner box combines up to 16 DC input combiners of photovoltaic cell modules into one or multiple outputs, each fitted with a fuse, and the output is equipped with lightning protection devices and circuit breakers, thus greatly simplifying the input wiring of DC distribution cabinets and inverters. Provide lightning protection, short circuit protection, and grounding protection. The combiner box is divided into two types: intelligent and non-intelligent. Inside of the former there is equipped with a current monitoring unit, which can monitor the input current of each photovoltaic cell string, summarize the output voltage, the temperature inside the box, the status of the lightning arrester and the circuit breaker.

Electric technical parameters

Product model	XZPV-DC32	XZPV-DC24	XZPV-DC16	XZPV-DC8
Number of input channels	32	24	16	below 8 channels
Maximum input voltage	DC1500V
Input current of each channel	0~20A
Maximum output current	400A	300A	200A	140A
Circuit breaker frame current	630A	400A	315A	250A
Input joint	MC4(optional)
Input waterproof terminal size	M16(Ф4~8mm)
Output waterproof terminal size	M63(Ф37~44mm)
Grounding waterproof terminal size	M18(Ф5~10mm)
Communication waterproof terminal size	M18(Ф5~10mm)
Monitoring module	detect the current of each channel, the bus voltage, the circuit breaker status, the lightning arrester status, and the box temperature
Communication method/protocol	RS485 bus /standard MODBUS-RTU protocol
Anti-reverse function	configured with modularly packaged anti-reverse diodes (optional)
Temperature and humidity	working temperature: -25~+50 ℃, humidity 95%, without condensing, without corrosive gas environment
Altitude	≤ 2000m
Monitoring module power consumption	≤ 8W during operation
Auxiliary power supply	Auxiliary power supply：AC85V~265V/DC24V(10%)/DC300V~1500V
Box material	hot-dip galvanized steel plate/stainless steel/cold-rolled steel plate
Level of protection	IP65

Schematic Diagram
