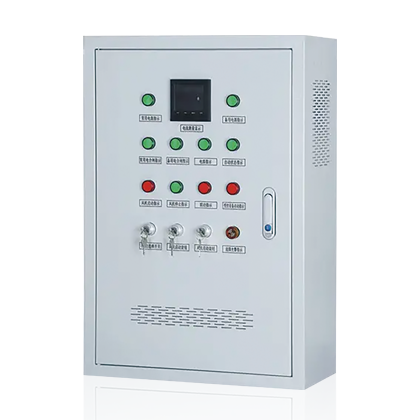

JXF Low-voltage Comprehensive Distribution Box
-
Overview of the products
Suitable for circuits with an AC frequency of 50Hz and a rated working voltage below 500V. Under special requirements, the
protection level can reach P55. There are tapping holes on both top and bottom of the box and live installed hole plates can be
reserved for multiple incoming lines. The maximum rated current can reach 630A. Specially suitable for the measuring control box
with such users as industrial and mining hotels, residential buildings etc.

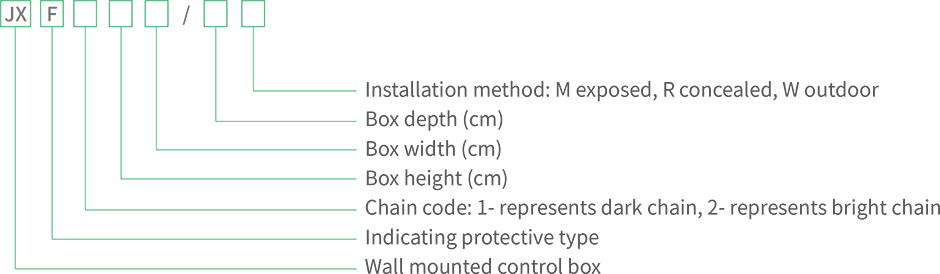

Model and meaning
Electric technical parameters
model
|
height
|
width
|
depth
|
JXF1-2525/14
|
250
|
250
|
140
|
JXF1-3025/14
|
300
|
350
|
140
|
JXF1-3025/18
|
300
|
350
|
180
|
JXF1-3030/14
|
300
|
300
|
140
|
JXF1-3030/20
|
300
|
300
|
200
|
JXF1-4030/14
|
400
|
300
|
140
|
JXF1-4030/20
|
400
|
300
|
200
|
JXF1-5040/14
|
500
|
400
|
140
|
JXF1-5040/20
|
500
|
400
|
200
|
JXF1-5040/23
|
500
|
400
|
230
|
JXF1-6040/14
|
600
|
400
|
140
|
JXF1-6040/20
|
600
|
400
|
200
|
JXF1-6040/23
|
600
|
400
|
230
|
JXF1-6050/14
|
600
|
500
|
140
|
JXF1-6050/20
|
600
|
500
|
200
|
JXF1-6050/23
|
600
|
500
|
230
|
JXF1-7050/16
|
700
|
500
|
160
|
JXF1-7050/20
|
700
|
500
|
200
|
JXF1-7050/25
|
700
|
500
|
250
|
JXF1-8060/20
|
800
|
600
|
200
|
JXF1-8060/25
|
800
|
600
|
250
|
JXF1-10080/20
|
1000
|
800
|
200
|
JXF1-10080/25
|
1000
|
800
|
250
|
JXF1-10080/30
|
1000
|
800
|
300
|
