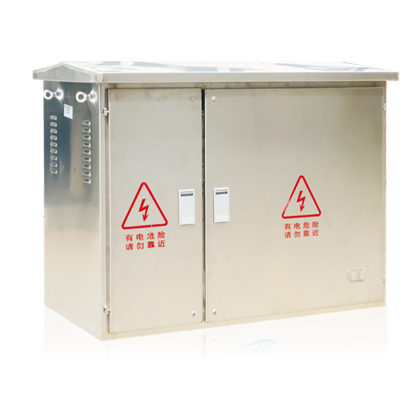

Outdoor Comprehensive Distribution Box
-
Overview of the products
JP series outdoor comprehensive distribution box is an outdoor comprehensive distribution device that integrates multiple
functions such as metering, outgoing lines, reactive power compensation, etc.and holds short circuit, overload, overvoltage,
leakage protection etc.functions. It is small in volume, beautiful in appearance, economical and practical and can be installed on
the poles of outdoor pole mounted transformers. Really an ideal new generation distribution product for urban and rural power
grid renovation.

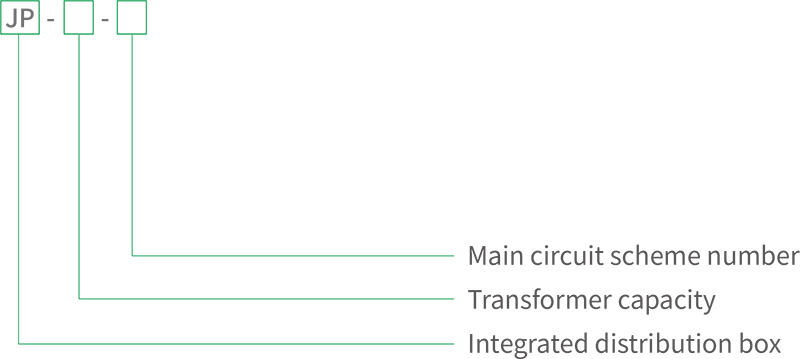

Model and meaning
Electric technical parameters
Project
|
Unit
|
Parameters
|
Transformer capacity
|
kVA
|
30-400
|
Rated working voltage
|
V
|
AC400
|
Auxiliary circuit working voltage
|
V
|
AC220,AC380
|
Rated frequency
|
Hz
|
50
|
Rated current
|
A
|
≤630
|
Rated leakage current
|
mA
|
30~300 adjustable
|
Level of protection
|
|
IP44
|
