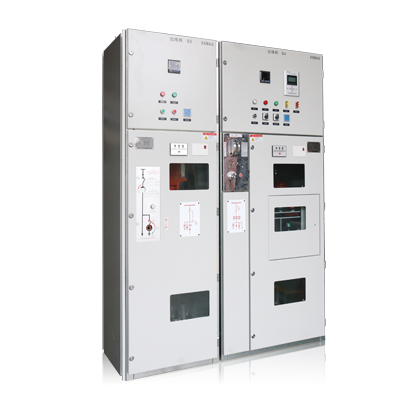

XGN66-12(Z) Box Type Fixed AC Metal Enclosed Switchgear

Overview of the products

XGN66-12 (z) box type fixed AC metal enclosed switchgear (hereinafter referred as switchgear) is a new generation of high-voltage electrical equipment in this Co., which meets with the requirements of the national standard GB3906 <<-35kv ac="" metal="" enclosed="" switchgear="">> and DLT404 <> of the Ministry of Electric Power, as well as the international standard IEC60298 <>.

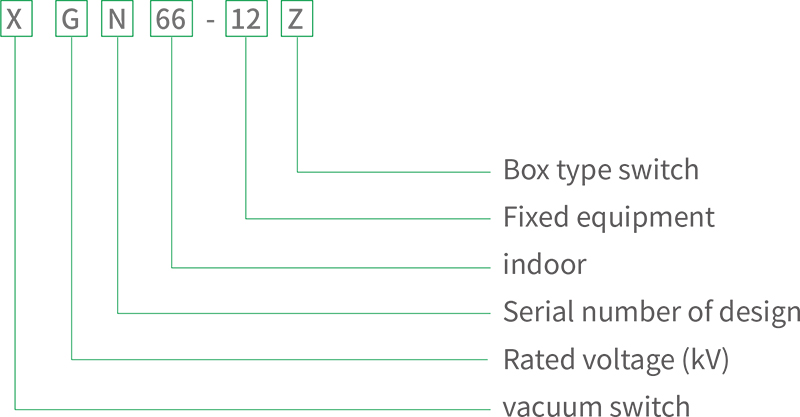

Model and meaning

Environmental conditions at use

· The cabinet body is welded with high-quality angle steel;
· The circuit breaker room is located in the middle (lower) part of the cabinet, making installation, debugging, and maintenance convenient. Standard VS1 circuit breaker with pressure release channel to ensure personal safety;
· Adopting advanced and reliable rotary isolation switches, it can safely enter the circuit breaker room for overhaul when the main busbar is live;
· The level of protection level of the entire cabinet is IP2X;
· Equipped with reliable and fully functional mandatory mechanical locking devices, simply and effectively to meet the "five prevention" requirements;
· Having a reliable grounding system;
· There is an observation window installed on the door, which can clearly observe the working status of the components inside the cabinet;
· The operating mechanism adopts the JSXGN locking mechanism used in the XGN2-12 cabinet, which is simple, reliable,convenient, and practical;
· The inlet and outlet cables are lower than the front of the cabinet, making it convenient for users to connect.
